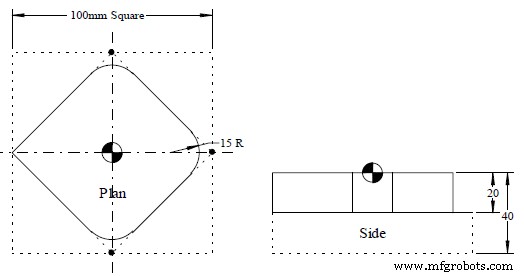

Heidenhain TNC Redondeo de Esquinas: Ejercicio de Programación Radio de Mezcla

Enviado por: Brian Dibujo/Imagen Programa CNC 0 BEGIN PGM 10108 MM 1 BLK FORM 0.1 Z X+0 Y+0 Z-40 2 BLK FORM 0.2 X+100 Y+100 Z+0 3 TOOL DEF 1 4 TOOL CALL 1 Z S1000 5 L M6 6 L X+60 Y-20 R0 FMAX M3 7 L Z-20 FMAX 8 APPR ? F? M8 9 L Y+60 10 CT X+60 Y+80 11 L X+40 12 CT X+30 Y+42.679 13 L Y+0 14 DEP ? 15

Enviado por: Mecanizador Dibujo/Imagen Programa CNC 0 BEGIN PGM 10107 MM 1 BLK FORM 0.1 Z X+0 Y+0 Z-40 2 BLK FORM 0.2 X+100 Y+100 Z+0 3 TOOL DEF 1 4 TOOL CALL 1 Z S1000 5 L M6 6 L X-20 Y+50 R0 FMAX M3 7 L Z-20 FMAX 8 APPR ? 9 L X+23.542 10 CR X+23.542 Y+80 R-40 DR+ 11 L X+0 12 DEP ? 13 TOOL CALL 0

Enviado por: Mecanizador Dibujo/Imagen Programa CNC 0 BEGIN PGM 10106 MM 1 BLK FORM 0.1 Z X+0 Y+0 Z-40 2 BLK FORM 0.2 X+100 Y+100 Z+0 3 TOOL DEF 1 4 TOOL CALL 1 Z S1000 5 L M6 6 L X-20 Y+50 R0 FMAX M3 7 L Z-20 FMAX 8 APPR ? F? M8 9 L X+23.542 10 CC X+50 Y+50 11 C X+23.542 Y+80 DR+ 12 L X+0 13 DEP ?

Enviado por: Mecanizador Dibujo/Imagen Programa CNC 0 BEGIN PGM 10105 MM 1 BLK FORM 0.1 Z X-50 Y-50 Z-40 2 BLK FORM 0.2 X+50 Y+50 Z+0 3 TOOL DEF 1 4 TOOL CALL 1 Z S1000 5 L M6 6 L X+70 Y+0 R0 FMAX M3 7 L Z-20 FMAX 8 APPR ? 9 CC X+0 Y+0 10 C X+35 Y+0 DR- 11 DEP ? 12 TOOL CALL 0 13 L M6 14 STOP M30 1
